This article compiles essential knowledge on profiled steel sheeting, from nomenclature rules defining section types to key performance advantages such as high strength to weight ratio and structural efficiency. Particular attention is given to the rib/crown geometry, which dictates load bearing capacity, stacking stability, and composite interaction with concrete in floor deck systems.

Naming Rules

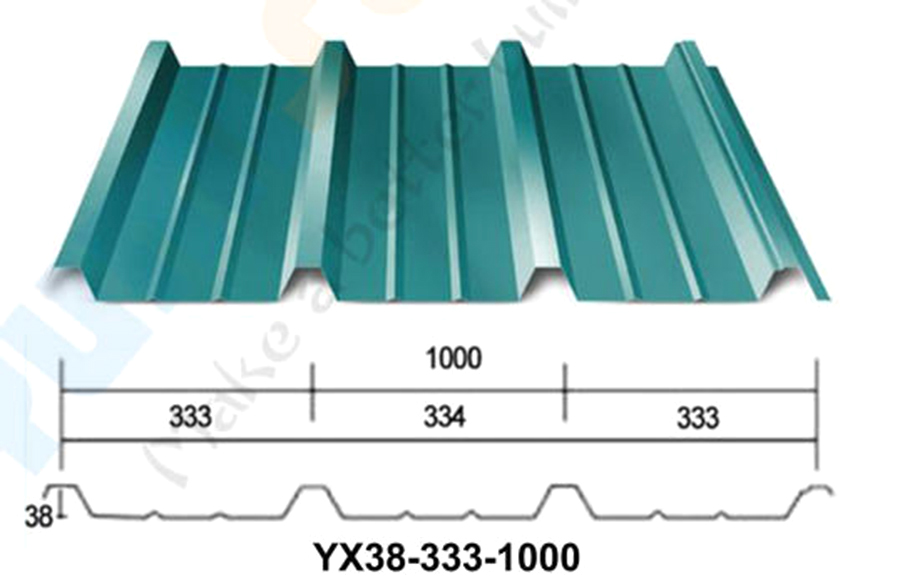

First, let's look at what profiled steel sheets are and how they are named:

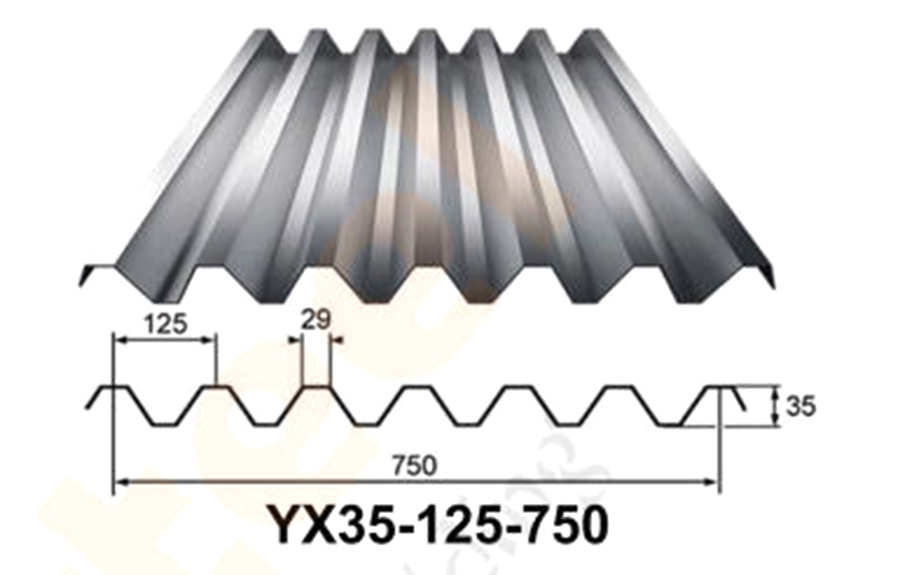

Core Parameters

Material Thickness: 0.75mm~1.5mm; commonly used thicknesses are 0.8mm/1.0mm. Increasing thickness can significantly improve load-bearing capacity, but costs increase.

Unfolded Width: Approximately 1000mm; the original width of the steel sheet before profiled forming, shrinking to an effective width of 750mm after roll forming.

Utilization Rate: 75%; effective width/unfolded width. High utilization rate reduces material waste.

Galvanizing weight: 60g/m²~275g/m²; Double-sided galvanized layer weight, high galvanizing weight improves corrosion resistance, suitable for humid environments.

Yield strength: 235MPa~345MPa; Commonly used Q235 or Q345 steel, higher strength means stronger resistance to deformation.

Performance Advantages

1. Balance between high load-bearing capacity and lightweight

The 35mm wave height design provides a larger moment of inertia, meeting the load requirements of lightweight roofs/walls with a thickness of only 0.8mm, reducing weight by 60%~70% compared to traditional concrete slabs.

2. Quick installation, saving construction time

The effective width of 750mm reduces the number of overlaps, and with self-tapping screws or welding fixation, construction efficiency is more than 3 times higher than flat steel plates.

3. High durability

The galvanized layer effectively isolates the steel from air contact, and the service life in indoor environments can reach more than 20 years; if aluminum zinc plating (AZ150) or epoxy coating is used, the service life can be extended to 50 years. 4. Multifunctional Adaptability: It can be used directly as a permanent formwork (no demolding required), or layered with insulation cotton and waterproof membrane to form a composite roofing system.

Corrugated Steel Sheet Corrugations

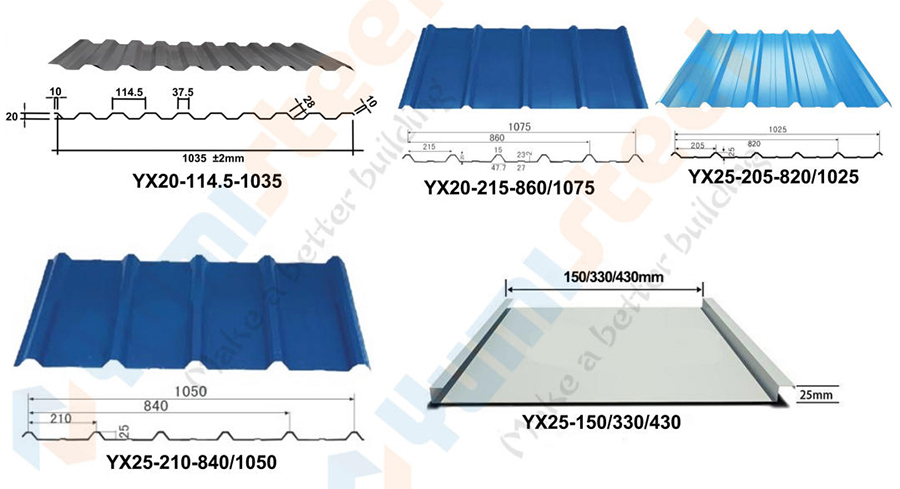

The corrugations of a corrugated steel sheet refer to the highest point of its cross-section. The corresponding key dimensional parameter is the wave height, typically between 10mm and 200mm. The wave height is the core indicator determining the mechanical properties and applicable scenarios of the corrugated steel sheet. Based on the wave height, corrugated steel sheets can be divided into the following three categories:

 In summary, mastering profiled steel sheeting requires understanding its nomenclature for accurate specification, appreciating its performance advantages in structural efficiency and durability, and recognizing the critical role of wave crown geometry in load transfer and composite action. Together, these knowledge points form the foundation for informed material selection and successful project execution.
