With the fast pace of modern life, foldable houses are becoming an efficient solution for contemporary living. They save time, reduce costs, and are easy to transport. The X-type and Z-type foldable container houses are two popular models. Here, we analyze the differences between these two types of container houses.

The differences between X and Z Folding Container House

☆Definition

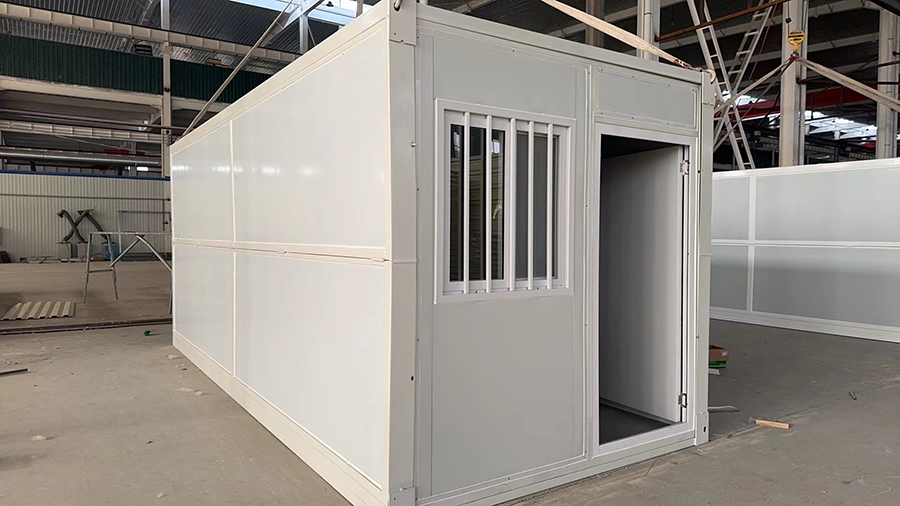

X Folding Container House

The X-folding container house is an expandable modular building utilizing a horizontal cross-folding mechanism. It consists of reinforced steel frames, interconnected wall panels, and central locking systems. This prefabricated structure provides rapid deployment, excellent weather resistance, and durable spatial performance. Its compact transport size and quick setup make it ideal for temporary facilities and emergency shelters.

Z Folding Container House

The Z-folding container house is a prefabricated modular structure featuring a unique zig-zag folding wall system. Its core components include reinforced steel frames, interconnected wall panels, and integrated locking mechanisms. This portable building offers excellent structural stability, weather resistance, and rapid deployment capability. The compact folding design ensures maximum space utilization and transportation efficiency, making it an ideal relocatable shelter solution for various temporary applications.

☆Set up and fold method

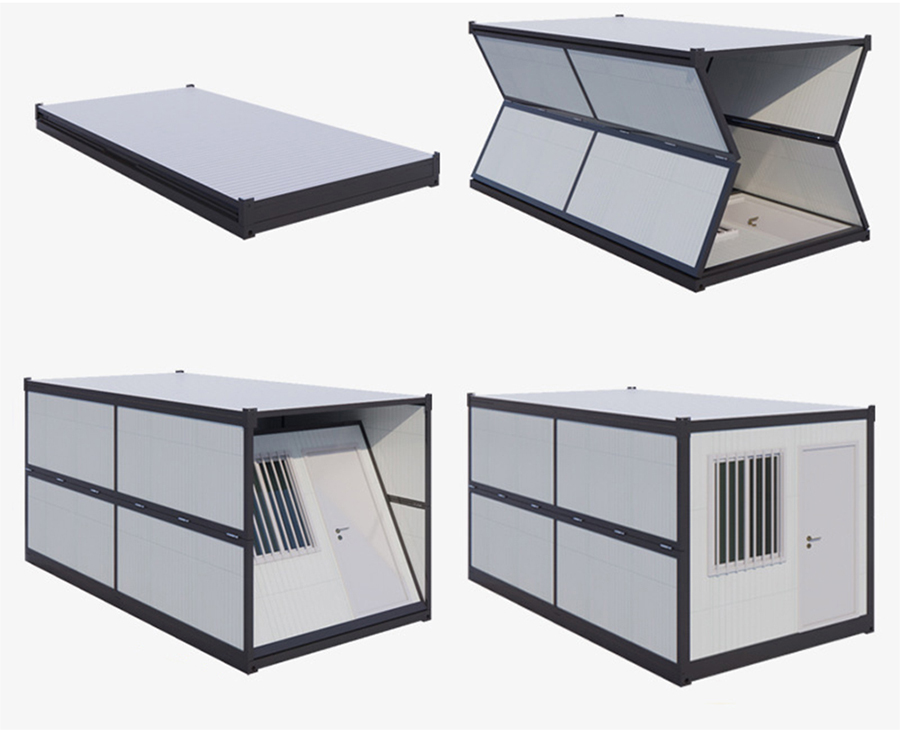

X Folding Container House

The X-folding container house expands horizontally via a manual pull mechanism. Its four wall assemblies slide outward along tracks, doubling the floor space. After unfolding, locking pins are secured for stability, enabling rapid deployment without heavy machinery.

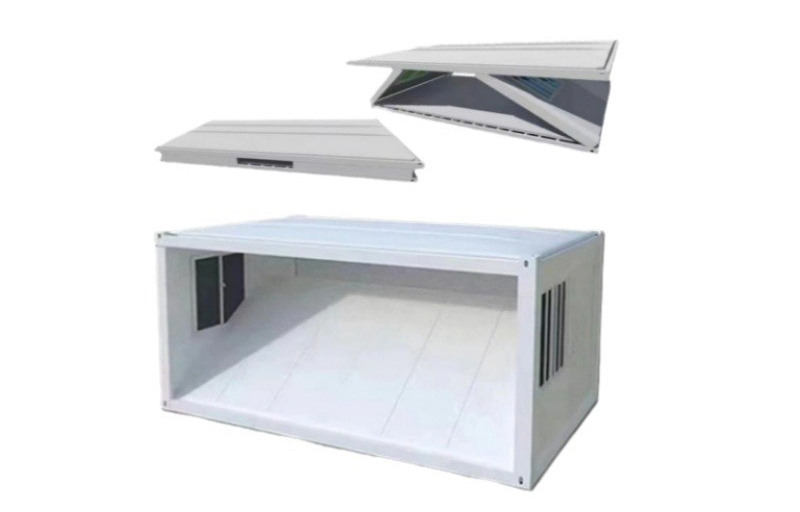

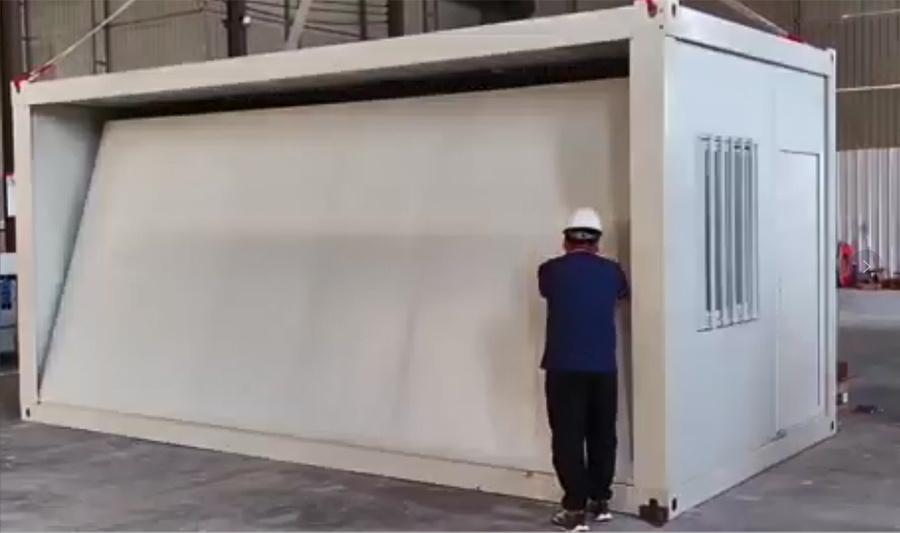

Z Folding Container House

The Z-folding container house features a zig-zag folding mechanism. It expands from a compact unit by lifting the roof, which unfolds walls automatically. Locking pins secure the structure, enabling rapid, crane-free setup and repeated use.

☆Roof Performance

X Folding Container House

The X-type utilizes a simpler roof formed by folded wall panels, relying primarily on sealants for waterproofing. While functional in mild conditions, it requires regular maintenance of fold-line seals and demonstrates limited performance in extreme weather situations compared to reinforced designs.

Z Folding Container House

The Z-type features a reinforced roof structure with integrated gaskets and drainage systems, providing exceptional load-bearing capacity and waterproofing. It effectively handles heavy rain and snow, preventing water pooling and leakage for reliable all-weather protection with minimal maintenance requirements.

☆Space & Layout

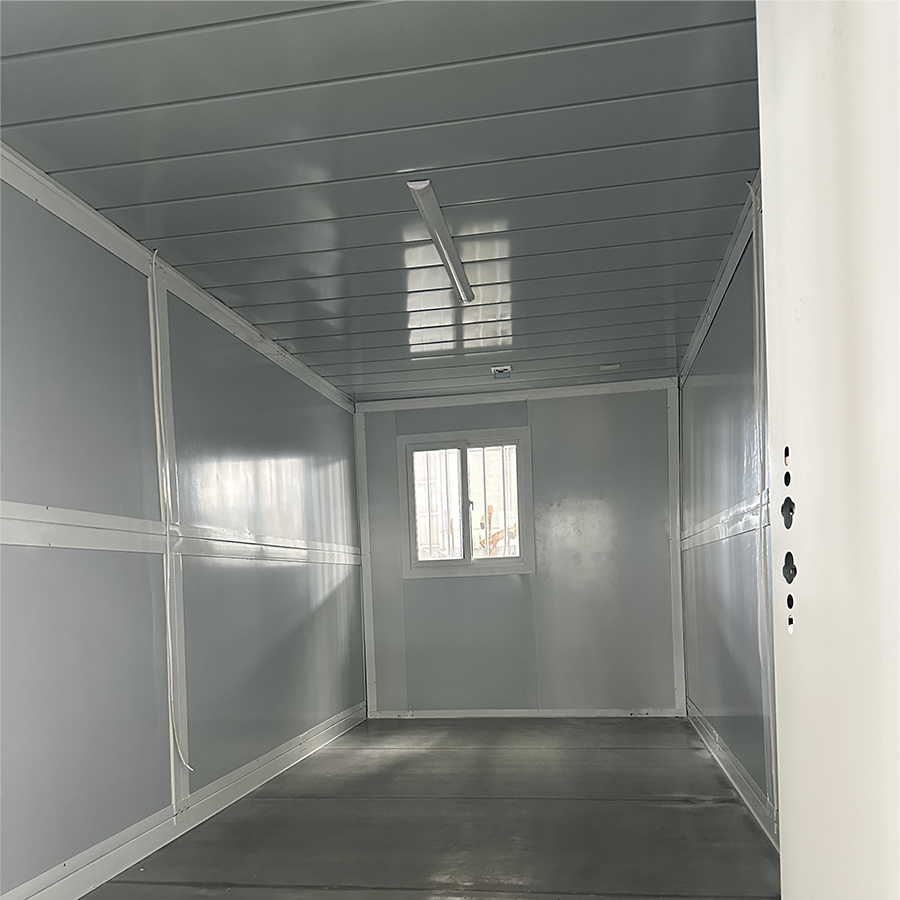

X Folding Container House

The X-type features an open-plan layout with minimal internal divisions, creating flexible single-space interiors. This configuration is particularly suitable for temporary pop-up offices and short-stay housing where rapid deployment and open spaces are prioritized over room separation.

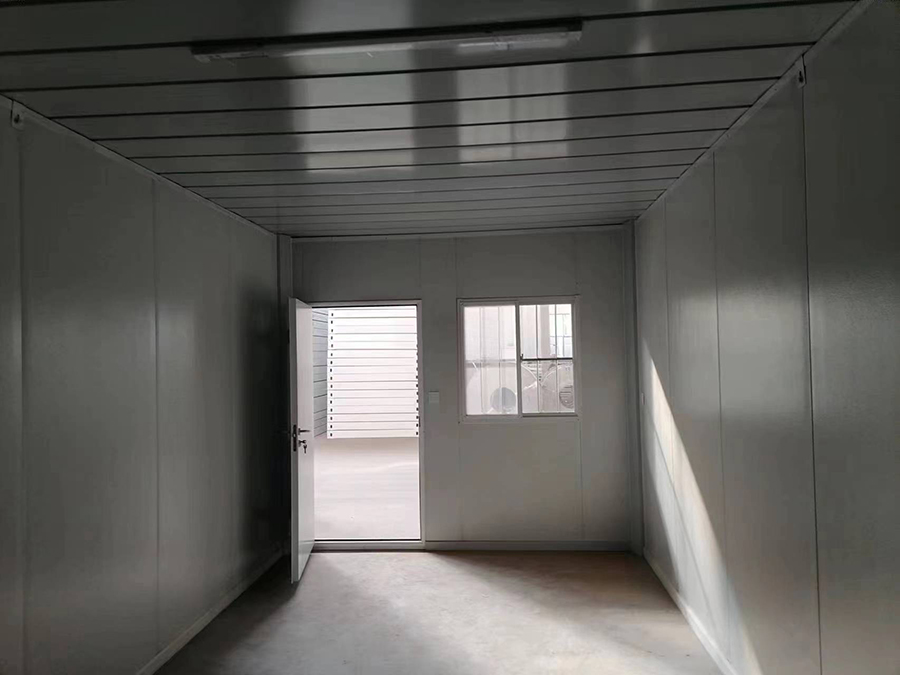

Z Folding Container House

The Z-type design creates defined room divisions, offering clear separate spaces ideal for two-bedroom configurations. This layout provides enhanced privacy and organization, making it well-suited for staff housing, rental units, and other applications requiring structured long-term living arrangements.

☆ Application

X Folding Container House

The X-type model suits temporary projects where cost-effectiveness and simplicity are prioritized. Designed for under 50 folding cycles and a 5-8 year lifespan, it serves well for pop-up offices, short-term housing, and event spaces where minimal relocation and basic functionality are required.

Z Folding Container House

The Z-type model is engineered for projects requiring frequent relocation and long-term use, supporting over 100 folding cycles and offering a 15-year service life. Its durable construction and enhanced weather resistance make it ideal for permanent installations, repeated deployments, and applications demanding high durability.

In summary, the choice between X and Z folding container houses depends on your specific project requirements. The Z-type folding house offers superior durability, long-term performance, and excellent weather resistance, making it ideal for frequent relocation and extended service life. Conversely, the X-type folding container house provides cost-effective simplicity perfect for temporary installations and short-term needs. Carefully evaluating your timeline, mobility requirements, and environmental conditions will ensure you select the most suitable prefabricated housing solution. Both modular designs deliver practical portable architecture while serving distinct application scenarios.

If you have any questions，please contact the Yumisteel team for tailored solutions!Thank you!
